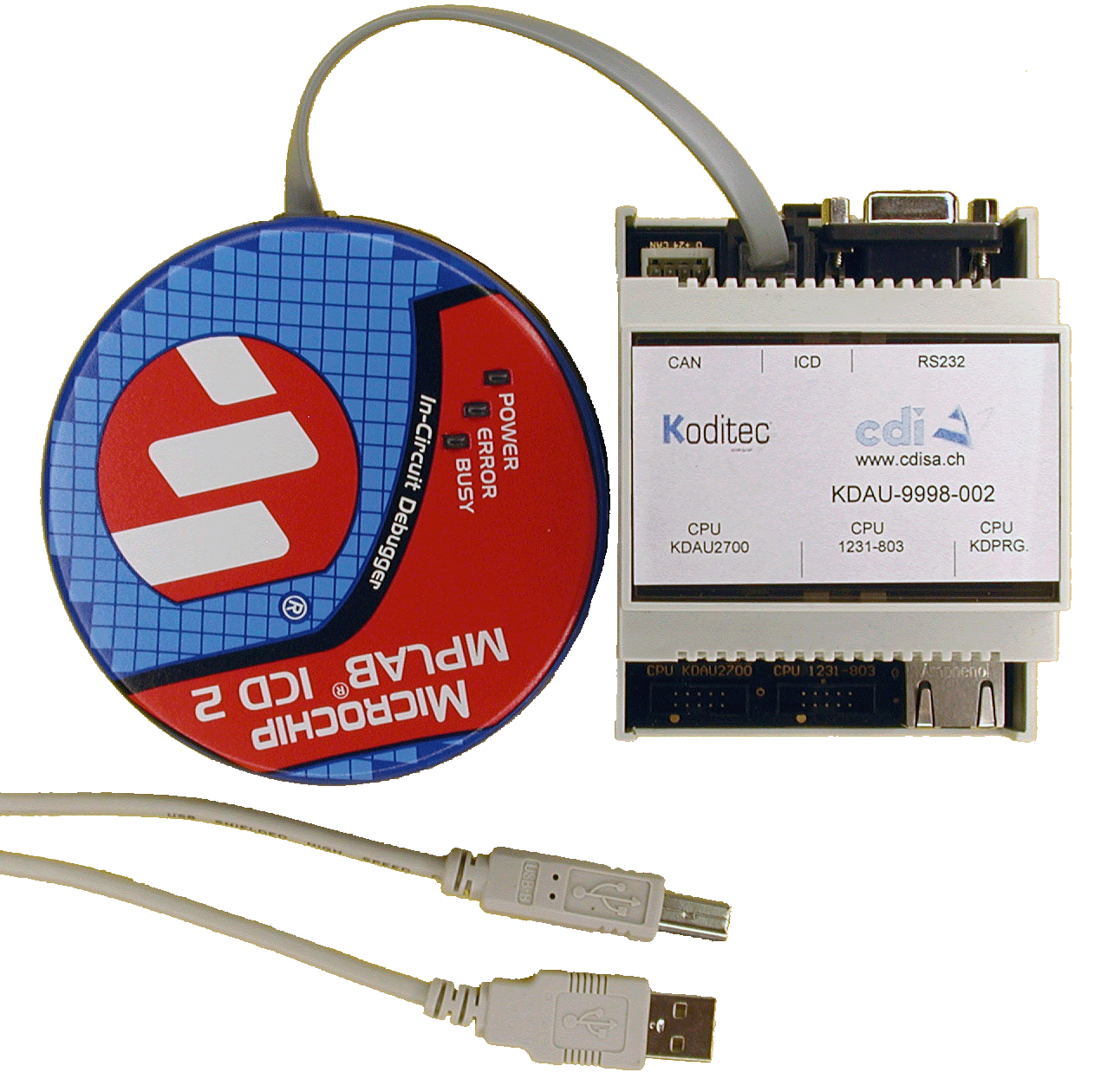

KDAU-9998-002 - PROGRAMMING INTERFACE MODULE

DESCRIPTION

TECHNICAL INFORMATION

ELECTRICAL

JUMPER SETTING

   +-+ RS STD
   +-+ RS TTL
   +-+ RS STD
   +-+ RS TTL
   +-+ RS TTL
   +-+ RS TTL

• RS STD - Set jumpers for KDAU-2700/KDAU-2014
• RS TTL - Set jumpers for 1231-803

CONNEXIONS

PROGRAMMING PORTS

• 1 x RJ45 Connector for direct connection to KDAU-2700 programming port
• Optional:
  • 1 x 5x2 2.0mm x 2.0mm IDC Connector for direct connection to KDAU-2014 programming port
  • 1 x 5x2 2.0mm x 2.0mm IDC Connector for direct connection to 1231-803 programming port
  • KDAU-2700/KDAU-2014 and 1231-803 programming connector are not compatible, connecting a processor to the wrong connector will destroy the processor

EXTERNAL CONNECTIONS

• 1 x RJ11 ICD Connection
• 1 x DB9F for RS232 Connection
• 1 x CAN Bus connection


MECHANICAL

DIMENSIONS

• L 71.0mm x H 90mm x 58mm
• Conform for 35mm DIN Rail mount (DIN 43880) or direct surface mount
• IP30 protection

COLOR

• Grey RAL 7035
